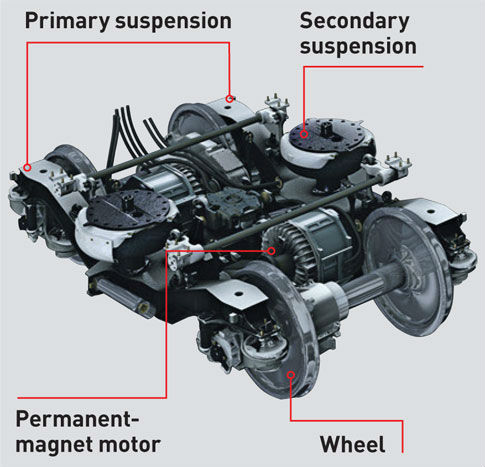

The railway bogie, or truck as it is called in the US, comes in many shapes and sizes but it is in its most developed form as the motor bogie of an electric or diesel locomotive or an EMU. Here it has to carry the motors, brakes and suspension systems all within a tight envelope. It is subjected to severe stresses and shocks and may have to run at over 300 km/h in a high speed application. The following paragraphs describe the parts shown on the photograph below, which is of a modern UK design. Click on the name in the picture to read the description.
bogie frame
Can be of steel plate or cast steel. In this case, it is a modern design of welded steel box format where the structure is formed into hollow sections of the required shape.
Transverse structural member of bogie frame (usually two off) which also supports the carbody guidance parts and the traction motors.
An air brake cylinder is provided for each wheel. A cylinder can operate tread or disc brakes. Some designs incorporate parking brakes as well. Some bogies have two brake cylinders per wheel for heavy duty braking requirements. Each wheel is provided with a brake disc on each side and a brake pad actuated by the brake cylinder. A pair of pads is hung from the bogie frame and activated by links attached to the piston in the brake cylinder. When air is admitted into the brake cylinder, the internal piston moves these links and causes the brake pads to press against the discs. A brake hanger support bracket carries the brake hangers, from which the pads are hung.
A steel coil spring, two of which are fitted to each axlebox in this design. They carry the weight of the bogie frame and anything attached to it.
Many motors are suspended between the transverse member of the bogie frame called the transom and the axle. This motor is called "nose suspended" because it is hung between the suspension tube and a single mounting on the bogie transom called the nose.
This contains the pinion and gearwheel which connects the drive from the armature to the axle.
Allows the bogie to be lifted by a crane without the need to tie chains or ropes around the frame.
Normally, each axle has its own motor. It drives the axle through the gearbox. Some designs, particularly on tramcars, use a motor to drive two axles
In the UK, the overhead line is divided into sections with short neutral sections separating them. It is necessary to switch off the current on the train while the neutral section is crossed. A magnetic device mounted on the track marks the start and finish of the neutral section. The device is detected by a box mounted on the leading bogie of the train to inform the equipment when to switch off and on.
Rubber air suspension bags are provided as the secondary suspension system for most modern trains. The air is supplied from the train's compressed air system.
Where a Wheel Slide Protection (WSP) system is fitted, axleboxes are fitted with speed sensors. These are connected by means of a cable attached to the WSP box cover on the axle end.
The motor circuits are connected to the traction equipment in the car or locomotive by flexible leads shown here.
To reduce the effects of vibration occurring as a result of the wheel/rail interface.
Simple protection for the return current brush, if fitted, and the axle bearing lubrication.
